Seal Science - Cap Seal Assemblies

Cap Seal Assemblies

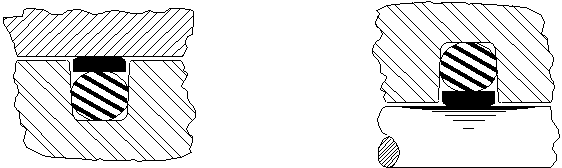

Type CP Piston Seal

Type CR Rod Seal

Service Description: Economical TFE and or Engineering Plastics wear cap with O-Ring for use in dynamic sealing situations where minimum friction is essential or wear environment is too severe for elastomers.

For piston, rod, and slow rotating applications.

N= NFPA Standard Fractional Radial Compression Piston Ring glands.

Special sizes consult Seal Science Engineering.

(See Seal Science gland charts for dimensions.)

Special Options: Friction-Reducing grooves, pressure balancing features, and blow-by- preventing notches can be added. Call 1-800-576-SEAL for assistance.

How to specify your Seal Science Cap Seal Assembly.

Format Example: CP-C-121-85/04

Type	Gland Code	Size	Plastic Material Code		O-Ring Material Code


CP	-C	-121	-85	/	04


Cap Seal Assembly, Piston	Cap Seal Gland (Piston)	-121 Gland (.1250 Bore)	TFE Compound for Soft Wear Surface		Nitrile Per Mil-R-7362
