Face Seals
TFE, Engineering Plastics, and Elastomeric
|
Type SFI/RSI Face Seal: Internal Pressure |
Type SFE/RSE Face Seal: External Pressure |

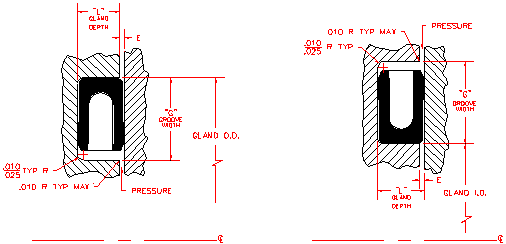

Face Seal Gland Details
|
Size Code |
Nom. Size |
G Groove Width |
L Gland Depth |
|
|
3" 32 |
.083 .081 |
145 .140 |
|
|
1" 8 |
.113 .111 |
.192 .187 |
|
|
3" 16 |
.173 .170 |
.286 .281 |
|
|
1" 4 |
.229 .226 |
.380 .375 |
Format Example: RSE-04-6.875-05/S
|
Type |
Size Code |
I.D. for SFI/RSI O.D. for SFE/RSE |
Jacket Material Code |
Spring Code |
||||
|
RSE |
04 |
6.875 |
05 |
/ |
S |
|||
|
Face Seal external pressure elastomeric jacket. |
�" Nom. Size |
Gland O.D. 6.875" |
Fluorocarbon Elastomer Per CV7505 |
17-7 PH Stainless Steel. |
